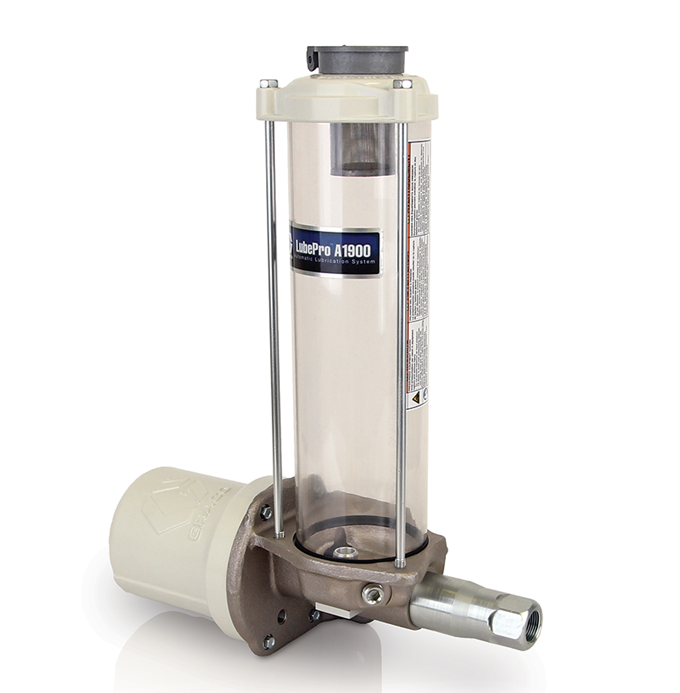

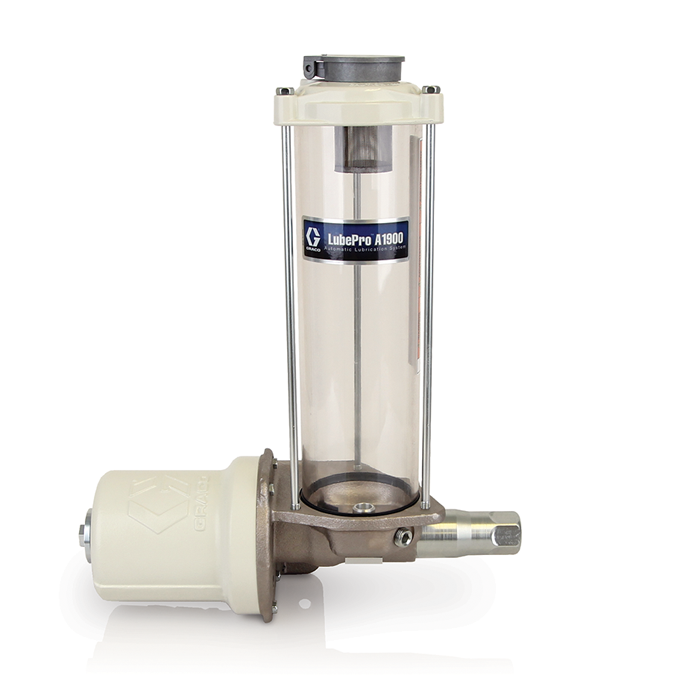

Graco LubePro™ A1900 Horizontal Pump

Graco LubePro™ A1900 Horizontal Pump

BUILT TO LAST. BUILT TO PERFORM.

  • Minimise equipment downtime and reduce maintenance costs
  • Increase equipment and manufacturing productivity
  • Available in multiple configurations depending on your application
  • Optimally lubricate equipment while it’s running.

Description



Need a better way to lubricate? Meet your Graco LubePro.

Without proper lubrication, your factory’s machines can suffer from downtime and reduced life, which impacts your company’s bottom line. Avoid the hassle. Meet your Graco LubePro.

LubePro™ series leverages the same proven quality and leading technology as Graco’s Fire-Ball® pump—the leader in durability and quality for over 50 years.

Graco LubePro is the choice of today’s lubrication professionals.

Features

  • LubePro A1900 is compatible with GL-42 and GL-43 injectors.
  • Pressure Ratio of 19:1.
  • A1900 delivers a greater output than competitive models at 3.0 in³ per stroke.
  • Pneumatic power makes it easy to install into existing airline.
  • Optional Low-Level Detection available, factory installed.
  • Integrated vent automatically and reliably relieves pressure on the return stroke, no pressure switch or wiring required.
  • Built with high-quality seals tested to outperform the competition.
  • High-strength, shatter resistant, 2-liter reservoir.
  • Optimally lubricates while your machines are running.
  • Provides accurate, reliable lubrication for every lube point.
  • Provides higher lube output and faster lubrication cycle.



19:1 LubePro™ Single Stroke Oil Pump

Maximum fluid working pressure
241 bar, 24 MPa
Pressure ratio
19:1
Pump output
3.0 cu. inch/ stroke
Reservoir capacity
4 lbs., 120 cu. inch
Maximum air inlet pressure
12.76 bar, 1.27 MPa
Air inlet size
1/4 in. NPT
Fluid outlet size
3/4 in. NPT
Filling
Top cover with strainer
Wetted parts
Reservoir: polycarbonate; Seals: Buna-N (nitrile)
Weight
9.9 kg
Operating temperature
-10°C to 65°C
Low-level switch
Maximum switching current
0.5 Amps
Voltage
12–240 DC/AC



Applications

  • Oil Transfer.
  • Single Line Parallel Lubrication.
